gftool.lattice.bethez.gf_z
- gftool.lattice.bethez.gf_z(z, half_bandwidth, coordination)[source]
Local Green’s function of Bethe lattice for coordination.
\[G(z) = 2 (Z - 1) / z / ((Z - 2) + Z\sqrt{1 - D^2/z^2})\]where \(D\) is the half_bandwidth and \(Z\) the`coordination`. See [economou2006].
- Parameters:
- zcomplex ndarray or complex
Green’s function is evaluated at complex frequency z.
- half_bandwidthfloat
Half-bandwidth of the DOS of the Bethe lattice.
- coordinationint
Coordination number of the Bethe lattice.
- Returns:
- complex ndarray or complex
Value of the Bethe Green’s function.
See also
gftool.lattice.bethe.gf_z
Case for coordination=np.infty.
gftool.lattice.onedim.gf_z
Case for coordination=2.
References
[economou2006]Economou, E. N. Green’s Functions in Quantum Physics. Springer, 2006.

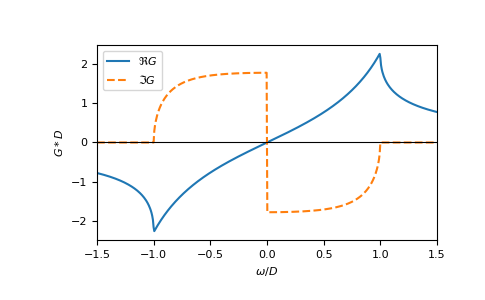

Examples
>>> ww = np.linspace(-1.5, 1.5, num=500) >>> gf_ww = gt.lattice.bethez.gf_z(ww, half_bandwidth=1, coordination=9)
>>> import matplotlib.pyplot as plt >>> _ = plt.plot(ww, gf_ww.real, label=r"$\Re G$") >>> _ = plt.plot(ww, gf_ww.imag, '--', label=r"$\Im G$") >>> _ = plt.xlabel(r"$\omega/D$") >>> _ = plt.ylabel(r"$G*D$") >>> _ = plt.axhline(0, color='black', linewidth=0.8) >>> _ = plt.xlim(left=ww.min(), right=ww.max()) >>> _ = plt.legend() >>> plt.show()
