gftool.lattice.rectangular.gf_z
- gftool.lattice.rectangular.gf_z(z, half_bandwidth, scale)[source]
Local Green’s function of the 2D rectangular lattice.
\[G(z) = \frac{1}{π} ∫_0^π \frac{dϕ}{\sqrt{(z - γ \cos ϕ)^2 - 1}}\]where \(γ\) is the scale, the hopping is chosen t=1, the half_bandwidth is \(D=2(1+γ)\). The integral is the complete elliptic integral of first kind. See [morita1971].
- Parameters:
- zcomplex np.ndarray or complex
Green’s function is evaluated at complex frequency z.
- half_bandwidthfloat
Half-bandwidth of the DOS of the rectangular lattice. The half_bandwidth corresponds to the nearest neighbor hopping \(t=D/2/(scale+1)\).
- scalefloat
Relative scale of the different hoppings \(t_1=scale*t_2\). scale=1 corresponds to the square lattice.
- Returns:
- complex np.ndarray or complex
Value of the rectangular lattice Green’s function.
See also
gftool.lattice.square.gf_z
Green’s function in the limit scale=1.
References
[morita1971]Morita, T., Horiguchi, T., 1971. Calculation of the Lattice Green’s Function for the bcc, fcc, and Rectangular Lattices. Journal of Mathematical Physics 12, 986–992. https://doi.org/10.1063/1.1665693
Examples

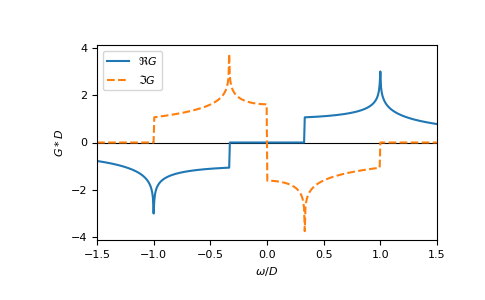

>>> ww = np.linspace(-1.5, 1.5, num=500, dtype=complex) >>> gf_ww = gt.lattice.rectangular.gf_z(ww, half_bandwidth=1, scale=2)
>>> import matplotlib.pyplot as plt >>> _ = plt.axhline(0, color='black', linewidth=0.8) >>> _ = plt.plot(ww.real, gf_ww.real, label=r"$\Re G$") >>> _ = plt.plot(ww.real, gf_ww.imag, '--', label=r"$\Im G$") >>> _ = plt.ylabel(r"$G*D$") >>> _ = plt.xlabel(r"$\omega/D$") >>> _ = plt.xlim(left=ww.real.min(), right=ww.real.max()) >>> _ = plt.legend() >>> plt.show()
