gftool.polepade.continuation
- gftool.polepade.continuation(z, fct_z, degree=-1, weight=None, moments=(), vandermond=<function polyvander>, rotate=None, real_asymp=True) PadeApprox [source]
Perform the Padé analytic continuation of (z, fct_z).
- Parameters:
- z, fct_z(N_z) complex np.ndarray
Variable where function is evaluated and function values.
- degreeint, optional
The difference of denominator and numerator degree (default: -1). This determines how fct_z decays for large abs(z): fct_z → z**degree. For Green’s functions it typically is -1, for self-energies it typically is 0.
- weight(N_z) float np.ndarray, optional
Weighting of the data points, for a known error σ this should be weight = 1./σ.
- moments(N) float array_like
Moments of the high-frequency expansion, where f(z) = moments / z**np.arange(1, N+1) for large z. This only affects the calculated pade.residues, and constrains them to fulfill the moments.
- Returns:
- PadeApprox
Padé analytic continuation parametrized by pade.zeros, pade.poles and pade.residues.
- Other Parameters:
- vandermondCallable, optional
Function giving the Vandermond matrix of the chosen polynomial basis. Defaults to simple polynomials.
- rotatebool or None, optional
Whether to rotate the coordinate to calculated zeros and poles (default: rotate if z is purely imaginary).
- real_asympbool, optional
Whether to consider only the real part of the asymptote, or treat it as complex number. Physically, to asymptote should typically be real (default: True).
Examples
>>> beta = 100 >>> iws = gt.matsubara_frequencies(range(512), beta=beta) >>> gf_iw = gt.square_gf_z(iws, half_bandwidth=1) >>> weight = 1./iws.imag # put emphasis on low frequencies >>> gf_pade = gt.polepade.continuation(iws, gf_iw, weight=weight, moments=[1.])
Compare the result on the real axis:
>>> import matplotlib.pyplot as plt >>> ww = np.linspace(-1.1, 1.1, num=5000) >>> __ = plt.plot(ww, gt.square_dos(ww, half_bandwidth=1)) >>> __ = plt.plot(ww, -1. / np.pi * gf_pade.eval_zeropole(ww).imag) >>> __ = plt.plot(ww, -1. / np.pi * gf_pade.eval_polefct(ww).imag) >>> plt.show()

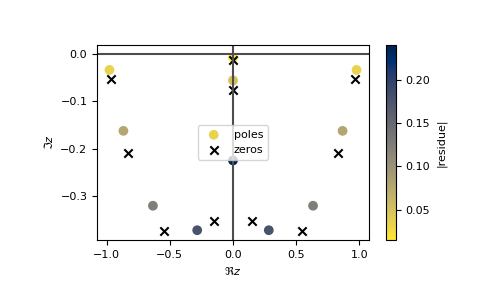

Investigate the pole structure of the continuation:
>>> gf_pade.plot() >>> plt.show()
