gftool.hermpade

Hermite-Padé approximants from Taylor expansion.

See [fasondini2019] for practical applications and [baker1996] for the extensive theoretical basis.

We present the example from [fasondini2019] showing the approximations. We consider the cubic root f(z) = (1 + z)**(1/3), the radius of convergence of its series is 1.

Taylor series

Obviously the Taylor series fails for z<=1 as it cannot represent a pole, but also for larger z>=1 it fails:

>>> from scipy.special import binom
>>> an = binom(1/3, np.arange(17))  # Taylor of (1+x)**(1/3)
>>> def f(z):
...     return np.emath.power(1+z, 1/3)
>>> taylor = np.polynomial.Polynomial(an)

>>> import matplotlib.pyplot as plt
>>> x = np.linspace(0, 3, num=500)
>>> __ = plt.plot(x, f(x), color='black')
>>> __ = plt.plot(x, taylor(x), color='C1')
>>> __ = plt.ylim(0, 1.75)
>>> plt.show()

(png, pdf)

../_images/gftool-hermpade-1.png

Padé approximant

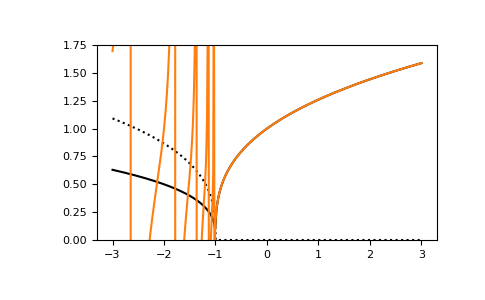

The Padé approximant can be used to improve the Taylor expansion and expands the applicability beyond the radius of convergence:

>>> x = np.linspace(-3, 3, num=501)
>>> pade = gt.hermpade.pade(an, num_deg=8, den_deg=8)
>>> __ = plt.plot(x, f(x).real, color='black')
>>> __ = plt.plot(x, f(x).imag, ':', color='black')
>>> __ = plt.plot(x, pade.eval(x), color='C1')
>>> __ = plt.ylim(0, 1.75)
>>> plt.show()

(png, pdf)

../_images/gftool-hermpade-2.png

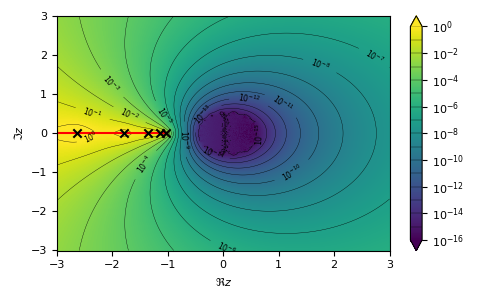

The Padé approximant provides a global approximation. For negative values, however, the Padé approximant still fails, as it cannot accurately represent a branch cut. The Padé approximant is suitable for simple poles and tries to approximate the branch-cut by a finite number of poles. It is instructive to plot the error in the complex plane:

>>> y = np.linspace(-3, 3, num=501)
>>> z = x[:, None] + 1j*y[None, :]
>>> error = abs(pade.eval(z) - f(z))
>>> poles = pade.denom.roots()

>>> import matplotlib as mpl
>>> fmt = mpl.ticker.LogFormatterMathtext()
>>> __ = fmt.create_dummy_axis()
>>> norm = mpl.colors.LogNorm(vmin=1e-16, vmax=1)
>>> __ = plt.pcolormesh(x, y, error.T, shading='nearest', norm=norm)
>>> cbar = plt.colorbar(extend='both')
>>> levels = np.logspace(-15, 0, 16)
>>> cont = plt.contour(x, y, error.T, colors='black', linewidths=0.25, levels=levels)
>>> __ = plt.clabel(cont, cont.levels, fmt=fmt, fontsize='x-small')
>>> for ll in levels:
...     __ = cbar.ax.axhline(ll, color='black', linewidth=0.25)
>>> __ = plt.hlines(0, xmin=x[0], xmax=-1, color='red')  # branch cut
>>> __ = plt.scatter(poles.real, poles.imag, color='black', marker='x', zorder=2)  # poles
>>> __ = plt.xlabel(r"$\Re z$")
>>> __ = plt.ylabel(r"$\Im z$")
>>> __ = plt.xlim(x[0], x[-1])
>>> plt.tight_layout()
>>> plt.gca().set_rasterization_zorder(1.5)  # avoid excessive files
>>> plt.show()

(png, pdf)

../_images/gftool-hermpade-3.png

Away from the branch-cut, indicated by the red line, the Padé approximant is a reasonable approximation. The crosses indicate the simple poles of the Padé approximant.

Quadratic Hermite-Padé approximant

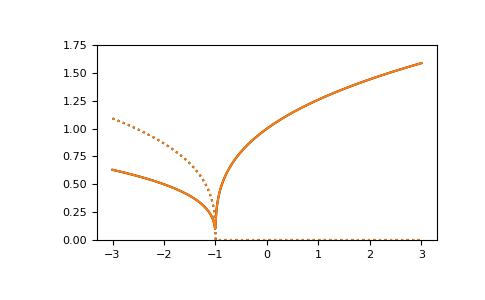

A further improvement is provided by the quadratic Hermite-Padé approximant, which can represent square-root branch cuts:

>>> herm2 = gt.hermpade.Hermite2.from_taylor(an, deg_p=5, deg_q=5, deg_r=5)

>>> __ = plt.plot(x, f(x).real, color='black')
>>> __ = plt.plot(x, f(x).imag, ':', color='black')
>>> __ = plt.plot(x, herm2.eval(x + 1e-16j).real, color='C1')
>>> __ = plt.plot(x, herm2.eval(x + 1e-16j).imag, ':', color='C1')
>>> __ = plt.ylim(0, 1.75)
>>> plt.show()

(png, pdf)

../_images/gftool-hermpade-4.png

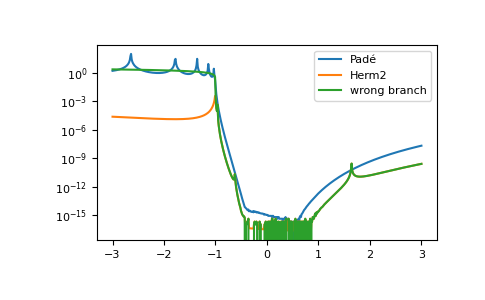

It nicely approximates the function almost everywhere. However, there is ambiguity which branch to choose, thus we had to add the shift 1e-16j by hand, to get the correct branch on the real axis. Let’s compare the error to the (linear) Padé approximant:

>>> __ = plt.plot(x, abs(pade.eval(x) - f(x)), label="Padé")
>>> __ = plt.plot(x, abs(herm2.eval(x + 1e-16j) - f(x)), label="Herm2")
>>> __ = plt.plot(x, abs(herm2.eval(x) - f(x)), label="wrong branch")
>>> __ = plt.yscale('log')
>>> __ = plt.legend()
>>> plt.show()

(png, pdf)

../_images/gftool-hermpade-5.png

The correct branch nicely approximates the function everywhere, but even the wrong branch performs better than Padé.

Let’s also compare the quality of the approximants in the complex plane:

>>> error2 = np.abs(herm2.eval(z) - f(z))

>>> __, axes = plt.subplots(ncols=2, sharex=True, sharey=True)
>>> __ = axes[0].set_title("Padé")
>>> __ = axes[1].set_title("Herm2")
>>> levels = np.logspace(-15, 0, 16)
>>> for ax, err in zip(axes, [error, error2]):
...     pcm = ax.pcolormesh(x, y, err.T, shading='nearest', norm=norm)
...     cont = ax.contour(x, y, err.T, colors='black', linewidths=0.25, levels=levels)
...     __ = ax.clabel(cont, cont.levels, fmt=fmt, fontsize='x-small')
...     __ = ax.set_xlabel(r"$\Re z$")
...     __ = ax.hlines(0, xmin=x[0], xmax=-1, color='red')  # branch cut
...     ax.set_rasterization_zorder(1.5)
>>> __ = axes[0].scatter(poles.real, poles.imag, color='black', marker='x', zorder=2)  # poles
>>> __ = plt.xlim(x[0], x[-1])
>>> __ = axes[0].set_ylabel(r"$\Im z$")
>>> plt.tight_layout()
>>> cbar = plt.colorbar(pcm, extend='both', ax=axes, fraction=0.08, pad=0.02)
>>> cbar.ax.tick_params(labelsize='x-small')
>>> for ll in levels:
...     __ = cbar.ax.axhline(ll, color='black', linewidth=0.25)
>>> plt.show()

(png, pdf)

../_images/gftool-hermpade-6.png

Note, however, the quadratic Hermite-Padé approximant contains the ambiguity which branch to choose. The heuristic can fail and should therefore be checked.

Alternative example: logarithmic branch cut

We also show the results for a logarithmic branch cut, showing that the results hold not only for algebraic branch cuts. Let’s consider the approximations for the logarithm f(z) = np.log(1 + z), whose series has a radius of convergence of 1:

>>> an = np.r_[0, (-1)**np.arange(16)/np.arange(1, 17)]  # Taylor of ln(1+x)
>>> def f(z):
...     return np.emath.log(1 + z)
>>> taylor = np.polynomial.Polynomial(an)
>>> pade = gt.hermpade.pade(an, num_deg=8, den_deg=8)
>>> herm2 = gt.hermpade.Hermite2.from_taylor(an, deg_p=5, deg_q=5, deg_r=5)

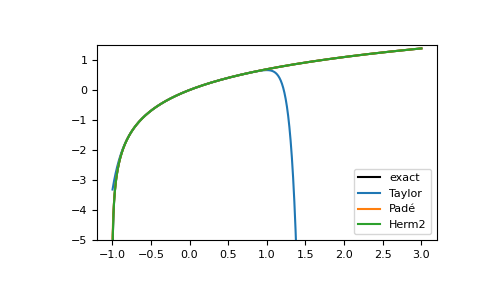

Again, we see that the Taylor series fails for larger z>=1, the (linear) Padé and the quadratic Hermite-Padé, on the other hand, yield good results also for large values.

>>> import matplotlib.pyplot as plt
>>> x = np.linspace(-1, 3, num=1001)[1:]
>>> __ = plt.plot(x, f(x), color='black', label="exact")
>>> __ = plt.plot(x, taylor(x), label="Taylor")
>>> __ = plt.plot(x, pade.eval(x), label="Padé")
>>> __ = plt.plot(x, herm2.eval(x), label="Herm2")
>>> __ = plt.ylim(-5, 1.5)
>>> __ = plt.legend()
>>> plt.show()

(png, pdf)

../_images/gftool-hermpade-8.png

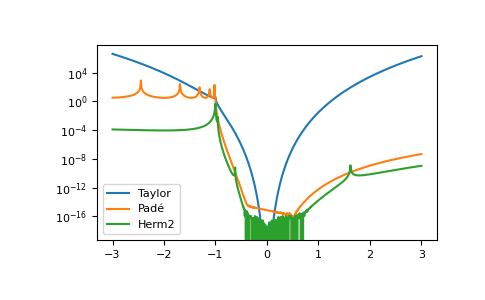

Plotting the error, again we see that the Taylor series is only valied for small values of z, and Padé fails to approximate the branch cut well. The quadratic Hermite-Padé approximant is best for (almost) all values.

>>> x = np.linspace(-3, 3, num=1001)
>>> __ = plt.plot(x, abs(taylor(x) - f(x)), label="Taylor")
>>> __ = plt.plot(x, abs(pade.eval(x) - f(x)), label="Padé")
>>> __ = plt.plot(x, abs(herm2.eval(x) - f(x)), label="Herm2")
>>> __ = plt.yscale('log')
>>> __ = plt.legend()
>>> plt.show()

(png, pdf)

../_images/gftool-hermpade-9.png

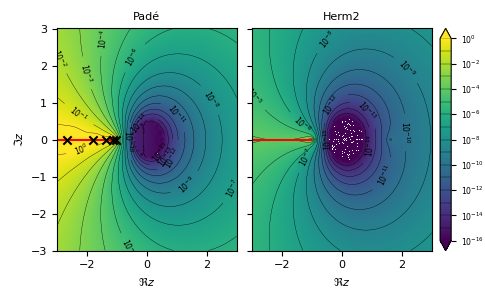

Plotting the error in the complex plain shows that Padé fails to resolve the branch cut but is else a good approximation globally. The branch-cut is indicated by the red line, the crosses mark the poles of Padé. The Hermite-Padé algorithm yields good results also in the vicinity of the branch cut.

>>> x = np.linspace(-3, 3, num=501)
>>> y = np.linspace(-3, 3, num=501)
>>> z = x[:, None] + 1j*y[None, :]
>>> error = np.abs(pade.eval(z) - f(z))
>>> error2 = np.abs(herm2.eval(z) - f(z))

>>> import matplotlib as mpl
>>> __, axes = plt.subplots(ncols=2, sharex=True, sharey=True)
>>> __ = axes[0].set_title("Padé")
>>> __ = axes[1].set_title("Herm2")
>>> norm = mpl.colors.LogNorm(vmin=1e-16, vmax=1)
>>> for ax, err in zip(axes, [error, error2]):
...     pcm = ax.pcolormesh(x, y, err.T, shading='nearest', norm=norm)
...     cont = ax.contour(x, y, err.T, colors='black', linewidths=0.25, levels=levels)
...     __ = ax.clabel(cont, cont.levels, fmt=fmt, fontsize='x-small')
...     __ = ax.set_xlabel(r"$\Re z$")
...     __ = ax.hlines(0, xmin=x[0], xmax=-1, color='red')  # branch cut
...     ax.set_rasterization_zorder(1.5)
>>> __ = axes[0].scatter(poles.real, poles.imag, color='black', marker='x', zorder=2)  # poles
>>> __ = plt.xlim(x[0], x[-1])
>>> __ = axes[0].set_ylabel(r"$\Im z$")
>>> plt.tight_layout()
>>> cbar = plt.colorbar(pcm, extend='both', ax=axes, fraction=0.08, pad=0.02)
>>> cbar.ax.tick_params(labelsize='x-small')
>>> for ll in levels:
...     __ = cbar.ax.axhline(ll, color='black', linewidth=0.25)
>>> plt.show()

(png, pdf)

../_images/gftool-hermpade-10.png

References

[fasondini2019] (1,2)

Fasondini, M., Hale, N., Spoerer, R. & Weideman, J. A. C. Quadratic Padé Approximation: Numerical Aspects and Applications. Computer research and modeling 11, 1017–1031 (2019). https://doi.org/10.20537/2076-7633-2019-11-6-1017-1031

[baker1996]

Baker Jr, G. A. & Graves-Morris, Pade Approximants. Second edition. (Cambridge University Press, 1996).

API

Functions

hermite2(an, p_deg, q_deg, r_deg)

Return the polynomials p, q, r for the quadratic Hermite-Padé approximant.

hermite2_lstsq(an, p_deg, q_deg, r_deg[, ...])

Return the polynomials p, q, r for the quadratic Hermite-Padé approximant.

pade(an, num_deg, den_deg[, fast])

Return the [num_deg/den_deg] Padé approximant to the polynomial an.

pade_lstsq(an, num_deg, den_deg[, rcond, fix_q])

Return the [num_deg/den_deg] Padé approximant to the polynomial an.

pader(an, num_deg, den_deg[, rcond])

Robust version of Padé approximant to polynomial an.

Classes

Hermite2(p, q, r, pade)

Quadratic Hermite-Padé approximant with branch selection according to Padé.
