gftool.fourier.iw2tau_dft
- gftool.fourier.iw2tau_dft(gf_iw, beta)[source]
Discrete Fourier transform of the Hermitian Green’s function gf_iw.
Fourier transformation of a fermionic Matsubara Green’s function to imaginary-time domain. The infinite Fourier sum is truncated. We assume a Hermitian Green’s function gf_iw, i.e. \(G(-iω_n) = G^*(iω_n)\), which is the case for commutator Green’s functions \(G_{AB}(τ) = ⟨A(τ)B⟩\) with \(A = B^†\). The Fourier transform gf_tau is then real.
- Parameters:
- gf_iw(…, N_iw) complex np.ndarray
The Green’s function at positive fermionic Matsubara frequencies \(iω_n\).
- betafloat
The inverse temperature \(beta = 1/k_B T\).
- Returns:
- (…, 2*N_iw + 1) float np.ndarray
The Fourier transform of gf_iw for imaginary times \(τ \in [0, β]\).
See also
iw2tau_dft_soft
Fourier transform with artificial softening of oszillations.
Notes
For accurate an accurate Fourier transform, it is necessary, that gf_iw has already reached it’s high-frequency behaviour, which need to be included explicitly. Therefore, the accuracy of the FT depends implicitely on the bandwidth!
Examples
>>> BETA = 50 >>> iws = gt.matsubara_frequencies(range(1024), beta=BETA) >>> tau = np.linspace(0, BETA, num=2*iws.size + 1, endpoint=True)
>>> poles = 2*np.random.random(10) - 1 # partially filled >>> weights = np.random.random(10) >>> weights = weights/np.sum(weights) >>> gf_iw = gt.pole_gf_z(iws, poles=poles, weights=weights) >>> # 1/z tail has to be handled manually >>> gf_dft = gt.fourier.iw2tau_dft(gf_iw - 1/iws, beta=BETA) - .5 >>> gf_iw.size, gf_dft.size (1024, 2049) >>> gf_tau = gt.pole_gf_tau(tau, poles=poles, weights=weights, beta=BETA)

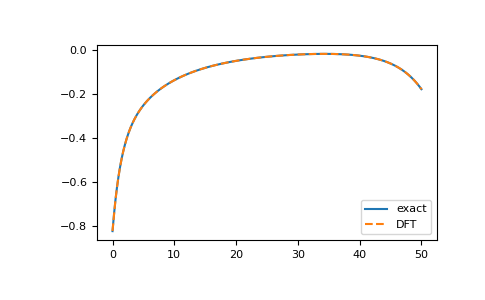

>>> import matplotlib.pyplot as plt >>> __ = plt.plot(tau, gf_tau, label='exact') >>> __ = plt.plot(tau, gf_dft, '--', label='DFT') >>> __ = plt.legend() >>> plt.show()
>>> __ = plt.title('Oscillations around boundaries 0, β') >>> __ = plt.plot(tau/BETA, gf_tau - gf_dft) >>> __ = plt.xlabel('τ/β') >>> plt.show()
The method is resistant against noise:

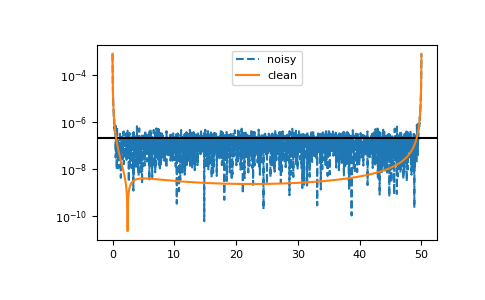

>>> magnitude = 2e-7 >>> noise = np.random.normal(scale=magnitude, size=gf_iw.size) >>> gf_dft_noisy = gt.fourier.iw2tau_dft(gf_iw + noise - 1/iws, beta=BETA) - .5 >>> __ = plt.plot(tau, abs(gf_tau - gf_dft_noisy), '--', label='noisy') >>> __ = plt.axhline(magnitude, color='black') >>> __ = plt.plot(tau, abs(gf_tau - gf_dft), label='clean') >>> __ = plt.legend() >>> plt.yscale('log') >>> plt.show()
